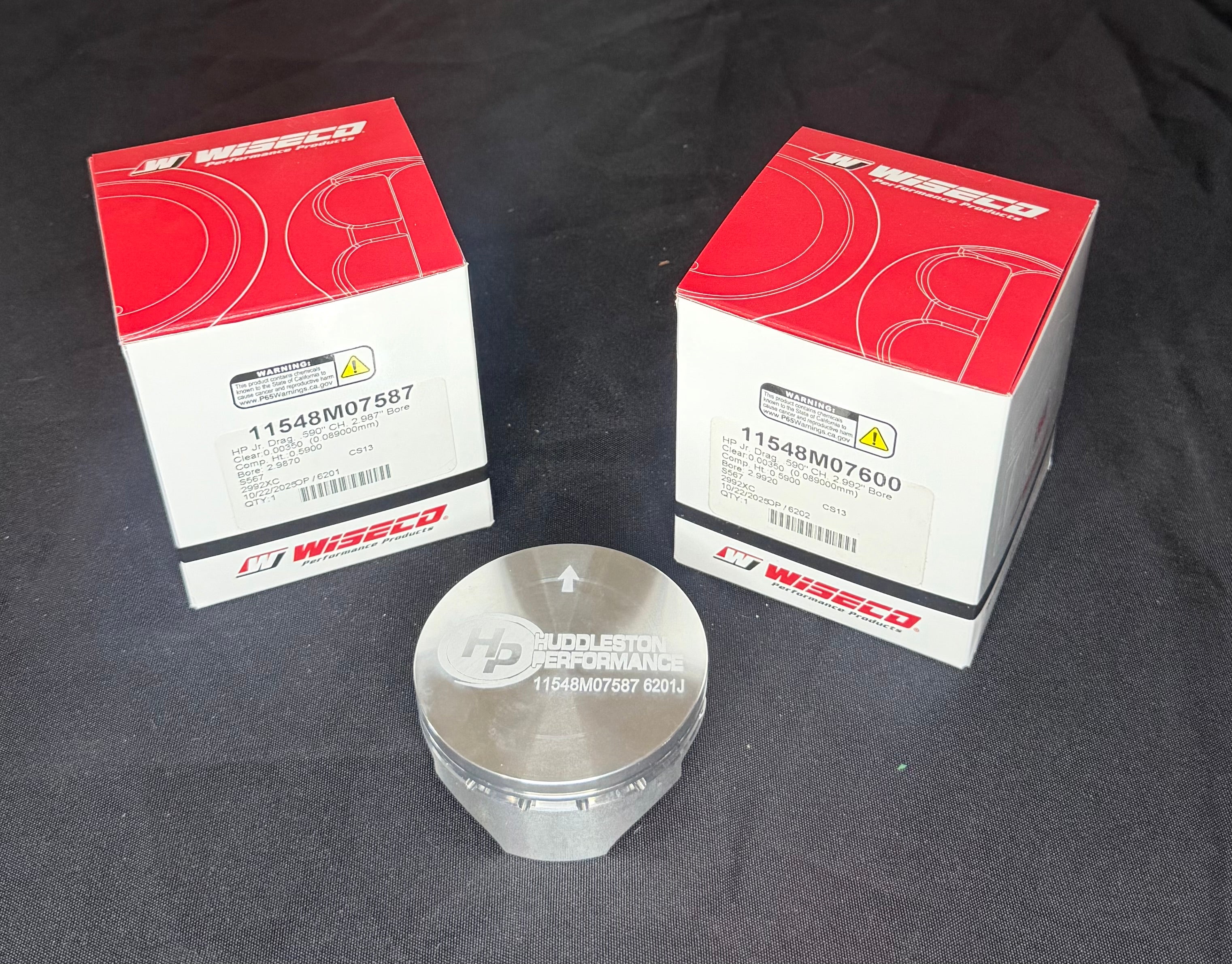

HP Tillotson Block Pistons

HP Custom Pistons designed for the Tillotson Racing Block.

• 76mm (Available in 2.987" and 2.992")
• .590 Piston Height
• 2 Rings Design
• .490 Wrist Pin
• Piston includes: Piston/Pin/Rings/Clips
• Popular use with ARC 2.4"(61mm) Crankshaft and ARC 6765 Rod

Size is HOLE SIZE, not piston size, pistons will be slightly under those sizes. We strongly recommend buying the piston, then honing your cylinder to your piston, as piston exact sizes can move by a vary slight amount.

Our HP Tillotson Block Kits currently start at 2.987", giving you another piston size for freshening in the future.
