HP Reaper Billet Cylinder Head

At Huddleston Performance we aim to bring the best value to customers when looking at components versus pricing, and that’s what the Reaper Billet Head does. Not the cheapest head on the market, but the improvements you’ll read about below explain the price point. The new HP Reaper Billet Head comes in at $895, and includes: Billet Cylinder Head, Stainless 6mm Valves, Comp 965 Valve Springs, Titanium Retainers, Lash Caps, Billet 4 Bolt Intake Manifold, and necessary bolts.

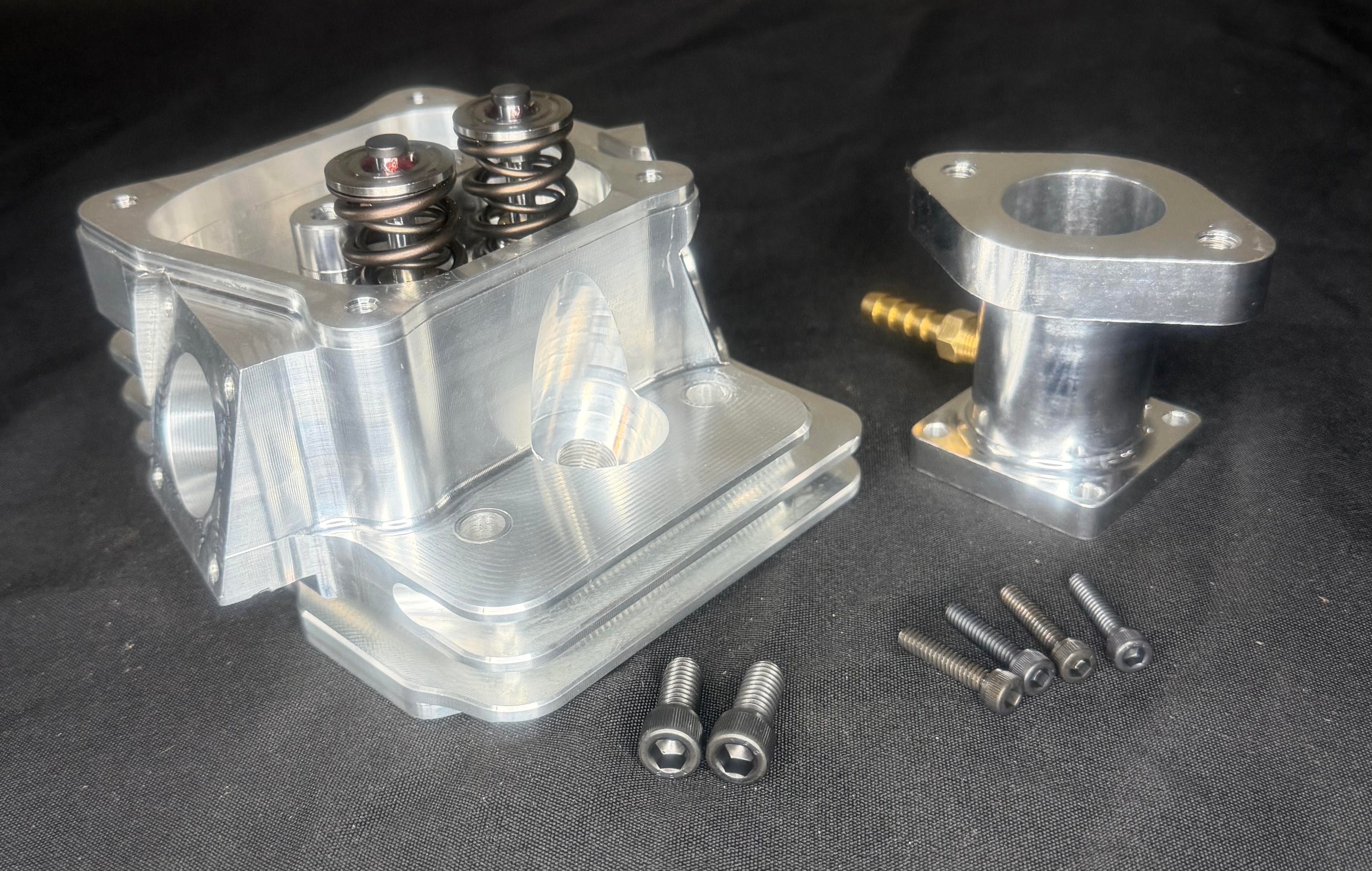

The HP Reaper Billet Cylinder Head starts off as a chunk of billet turned into a complete cylinder head, with every surface completed by CNC. Once machined, the head uses Durabond Killer B material seats, allowing it to work well with both Stainless or Titanium Valves. Valve stems are increased to 6mm to minimize the occasional exhaust valve failure of smaller stems, while port improvements increase the max CFM through the intake port even with with the larger stem. On the exhaust side, the Reaper Billet has the 2 Bolt header flange pattern to accommodate your existing header, with a 4 Bolt adapter coming soon. These are some of the bigger items, but see the full list below:

• Fully CNC Finished Head. Ports/Seats/Interior/Exterior all CNC machined.
• 19cc Chamber
• 6mm Stainless Valves in 36mm Int/27mm Ex. Titanium option available soon.
• Comp 965 Valve Springs
• Titanium Retainers
• Lash Caps
• Billet 4 Bolt Intake Manifold w/ Boot Style Carb End
• Durabond Killer B Valve Seats
• 150 CFM Intake Flow @ .550
• Replaceable Bronze Valve Guides

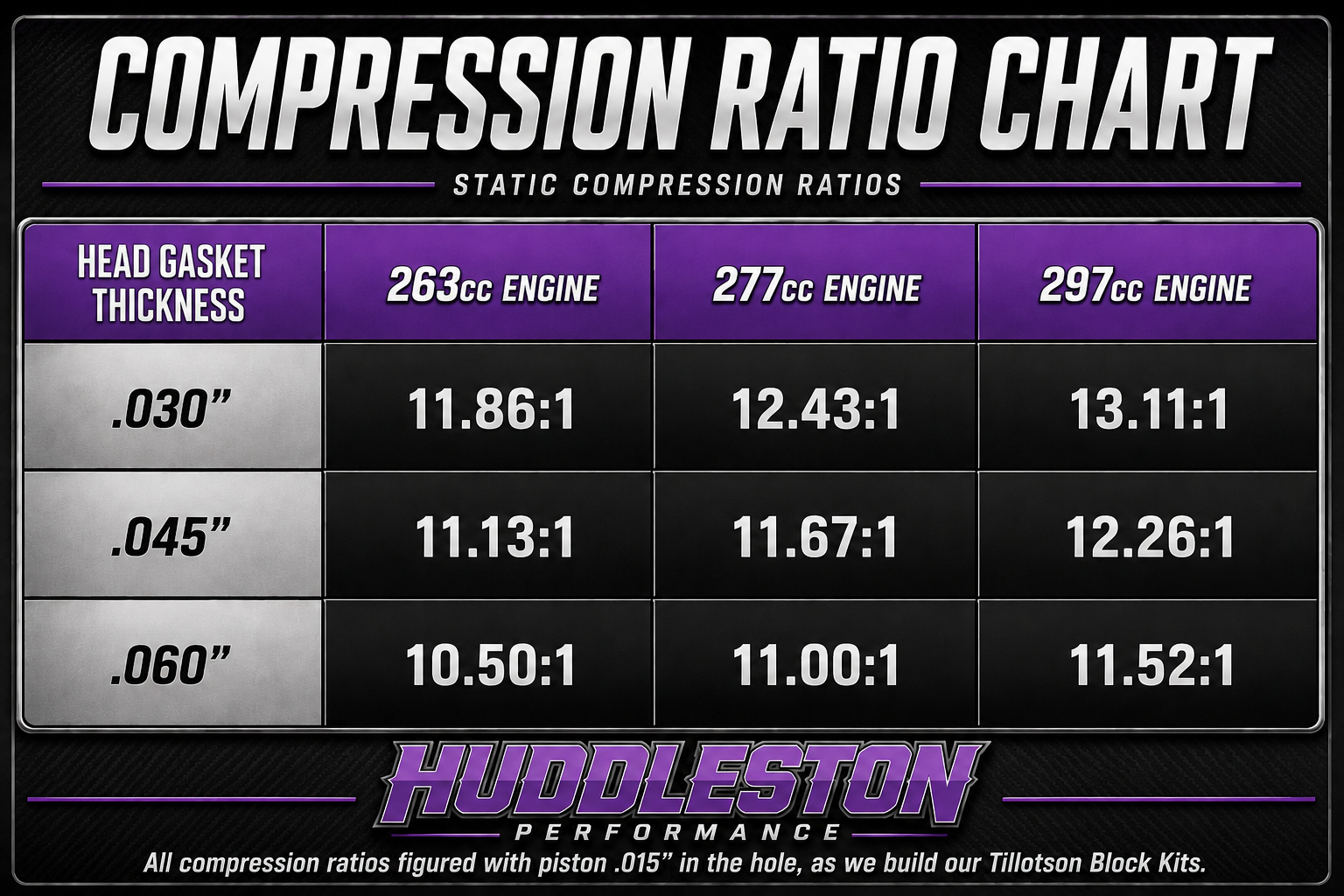

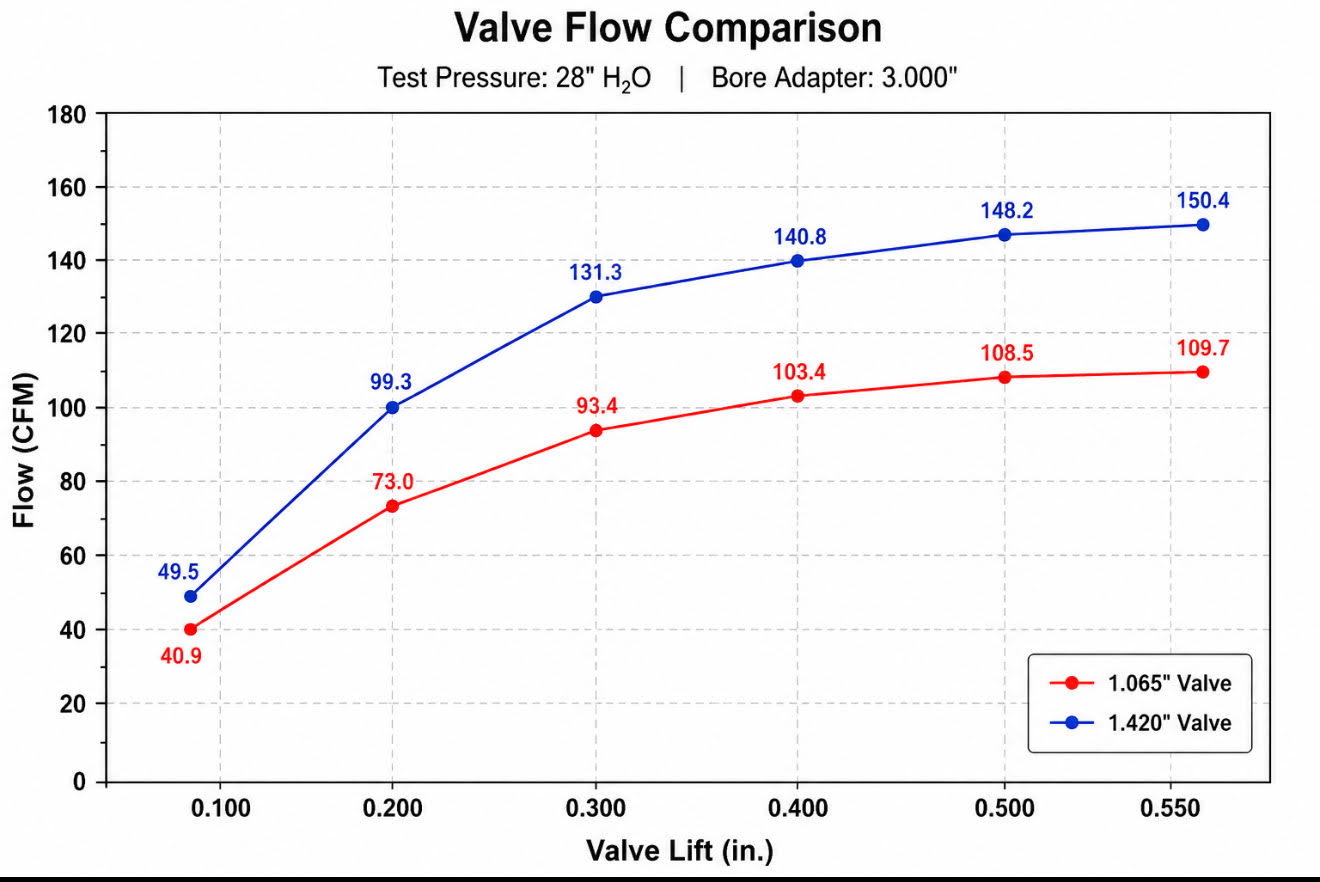

As you can see, the HP Reaper Billet Cylinder Head is a high quality, big horsepower piece right out of the box. Great for your Tillotson SB build for Jr. Dragster, Mini Drag Bike, and Open Karting Classes. Check out the flow charts and compression ratio chart in the photos above.
